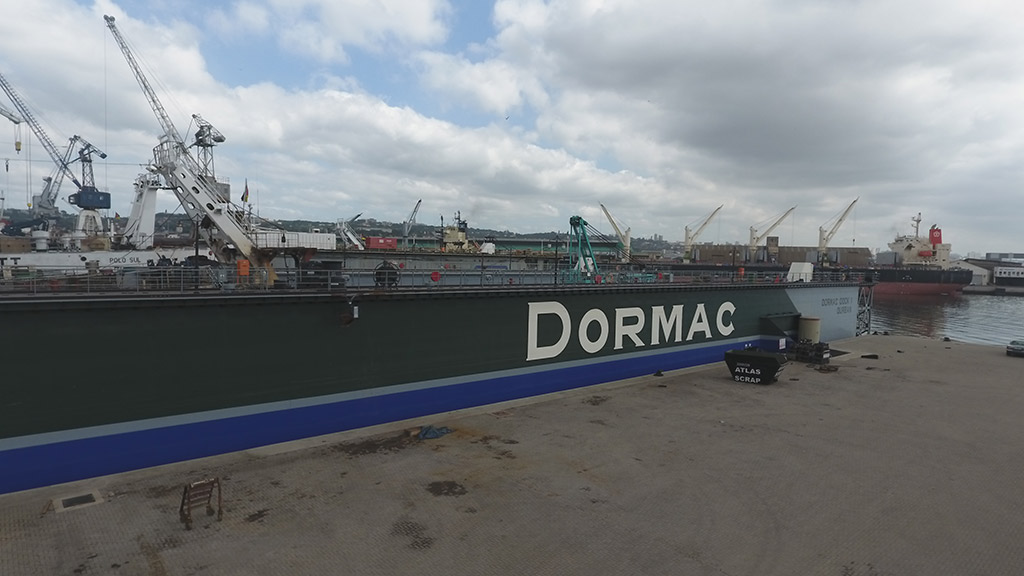

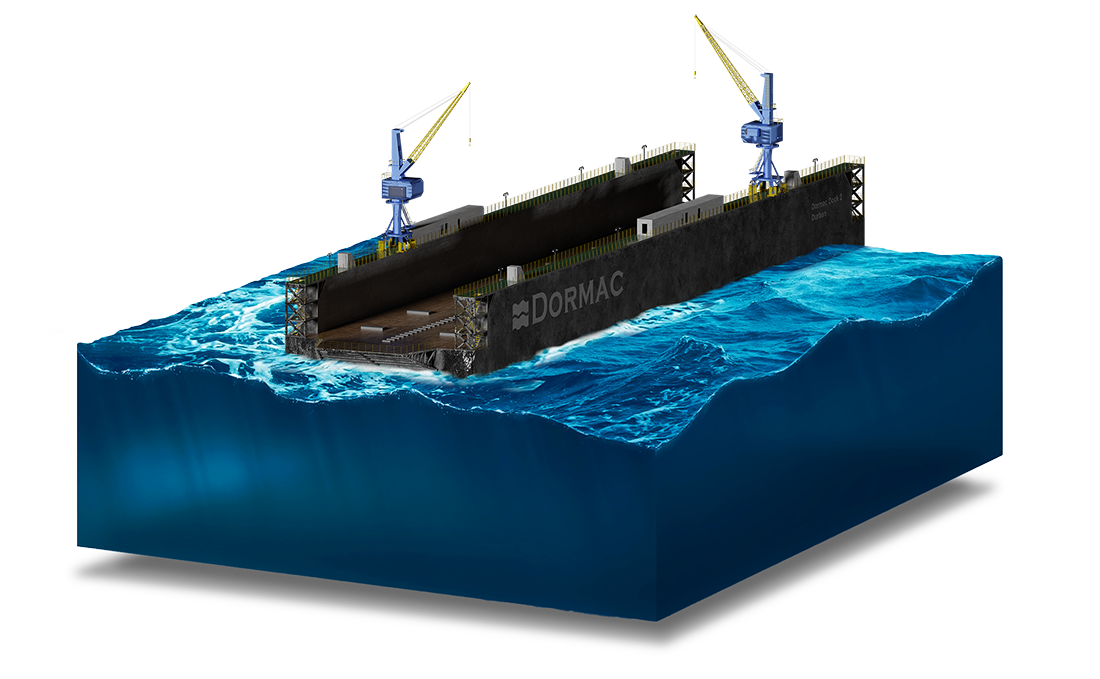

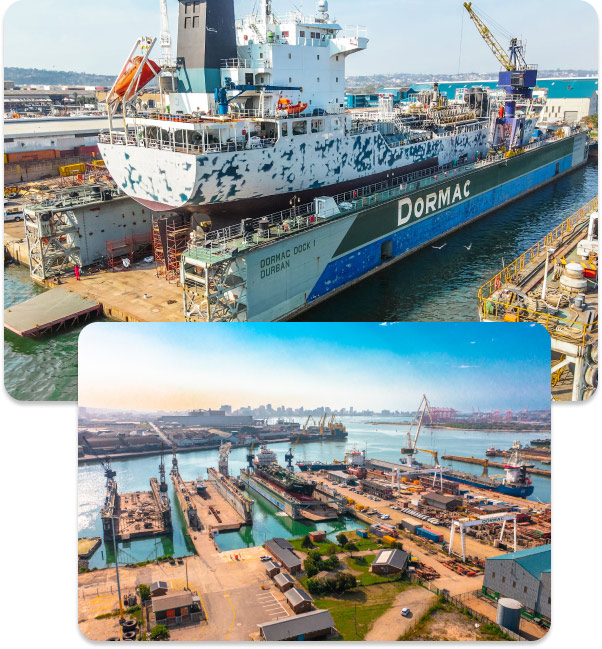

Dormac Dock 1

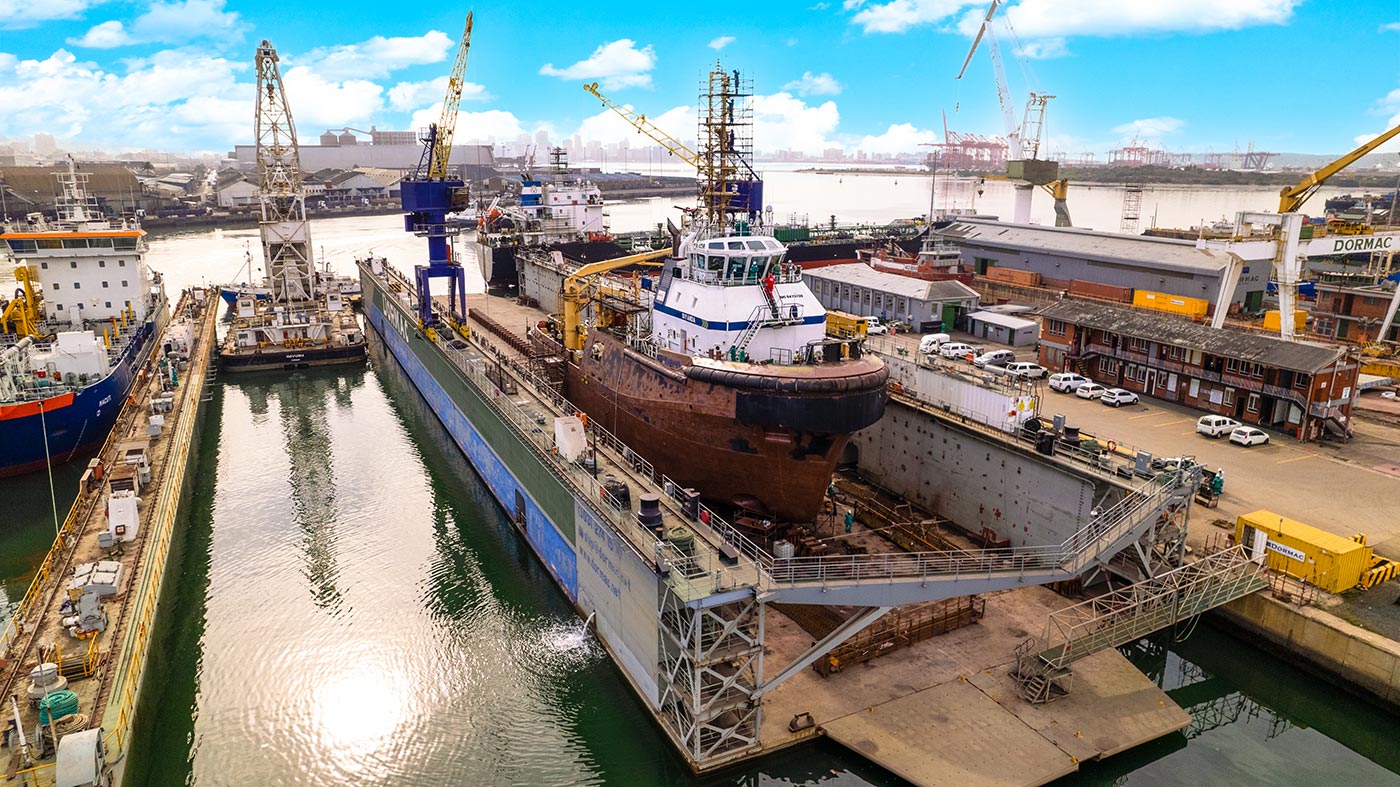

“Dormac Dock 1” is the first brand new composite floating dock to enter service in Southern Africa, and the single largest investment by the Southey Holdings Group into the Ship Repair industry in the region. The arrival of Dormac Dock 1 allows Dormac not only to accommodate a greater volume of clients’ vessels, but also to better utilise existing panamax docking facilities. The dock is equipped with the latest energy-efficient technology and a computerised levelling system, as well as two brand new 16m 7.5-tonne cranes (instead of the typical 5-tonne cranes).
Dormac Dock 1 is alongside the purpose-built quay, and permanently connected by means of two heavy-duty piles driven 20m deep into the seabed, thus allowing far more stability and control during docking and undocking operations.
The quay has been designed with recesses, allowing the dock to operate close to its edge, thus reducing crane span lengths and maximising efficiency.
Access is via heavy-duty compensating vehicle access ramps, as well as two biometrically-controlled personnel embarkation points. These not only enhance safety and productivity, but adhere to existing Dormac ISPS-approved procedures.
Based on client demands, the new quay has also been designed with back-of-quay support to accommodate offshore supply base activities and services.
|Length overall||155 Metres|
|Length Between Perpendiculars||138 Metres|
|Length of pontoon||139.5 Metres|
|Height of pontoon||4.8 Metres|
|Breadth between the entry fenders||24.5 Metres|
|Breadth between wing walls||26 Metres|
|Maximum submersion depth||7 Metres|
|Cranage||2 x 7.5 Tonne at 16 Metres|
|Lifting capacity||8500 Tonne|
